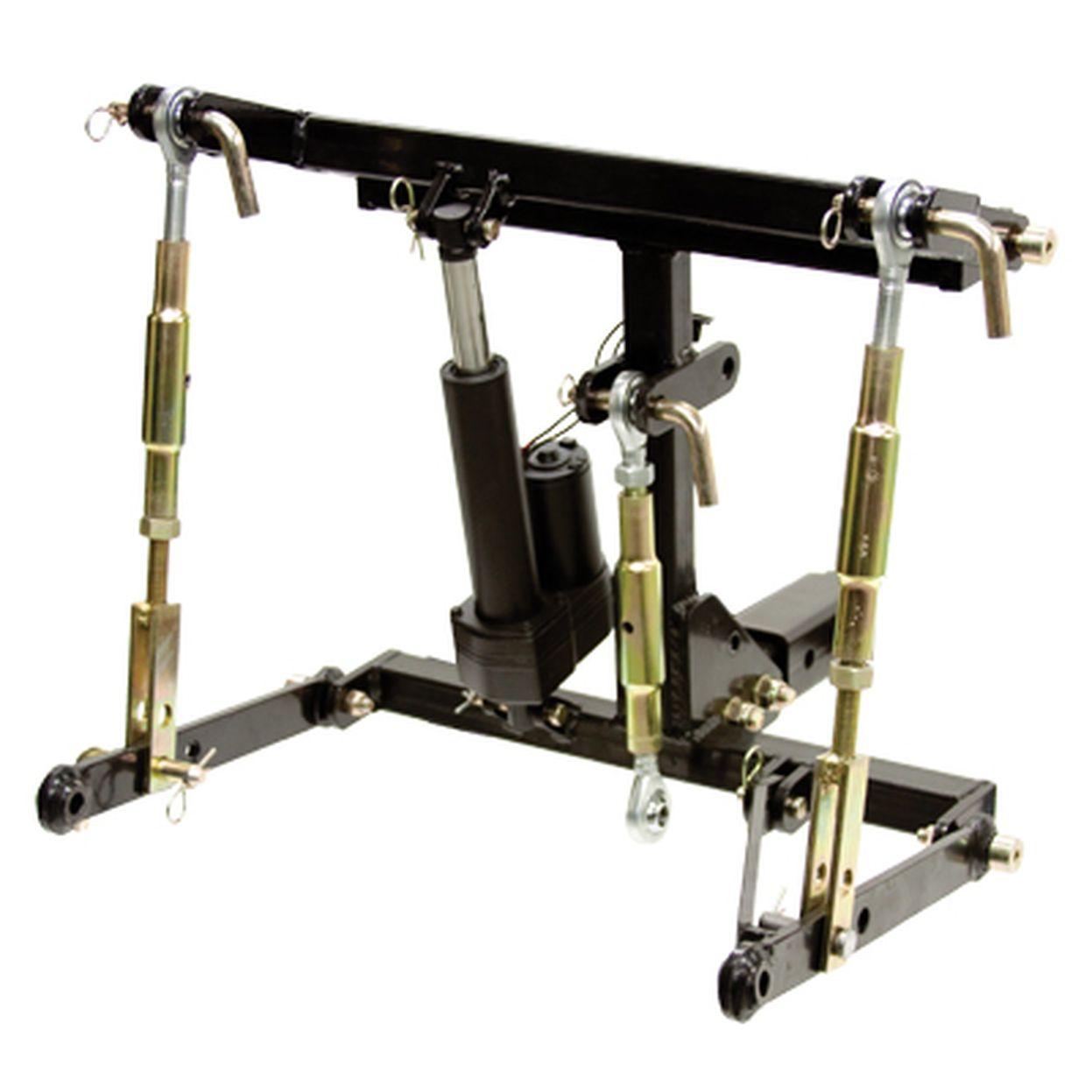

Heavy Duty 3 PT Hitch system

Additional frame support kit may be required, please check out our suspension locks and frame support kits For ATV's, recommended to use ATV Suspension Lock

Overview & Specs

Category ‘0’ Agricultural Implement System with 20" integrated tool bar with 5/8" diameter pins Heavy-duty 1-1/2” square tubing frame

Fits any 2” automotive style receiver hitch or if you don’t have one …check out our heavy duty line of hitches.

Easy change over from work to play in just minutes with quick, easy installation and adjustments without the need for tools.

Convenient rocker switch can be mounted to your handle bars/dash so soil depth adjustments and lift for transport is done without ever having to get off your machine

12v electric actuator lift system with 20 amp maximum draw. 250 lbs. lift capacity at the tool bar 300 lbs. down pressure capacity and 15” vertical lift at the toolbar

Fully adjustable lift arms and top link

Additional frame support kit may be required, please check out our suspension locks and frame support kits For ATV's, recommended to use ATV Suspension Lock

Recommended for use on ATVs and UTVs 350 cc or larger Requires 48" or 60" Accessory Tool Bar (sold separately)

Product is designed to fit most vehicles, however Kolpin does not guarantee vehicle fitment for all vehicles. See Kolpin.com for the latest vehicle fitment. Always refer to your vehicle’s OEM operator manual to understand warnings and fitment, which takes precedence over Kolpin product instructions and fitment.

Product Weight: 85 pounds
